Stainless Steel High Temperature Resistance 0.10mm Knitted Wire Mesh Gaskets For Shielding
Knitted Wire Mesh Gaskets introduce
Knitted Wire Mesh Gaskets are general purpose gaskets for EMI and RFI shielding. Widely used in shielding of magnetic field and electric field environment. The raw materials of knitting wire washer are stainless steel, tinned copper clad steel wire, copper, Monel alloy, aluminum and so on. The wire is woven through a knitting machine into a soft, firm screen.
Knitted Wire Mesh Gaskets classify
Elastic core knitted wire mesh gaskets usually consist of a layer of knitted mesh covering a foam, rubber or elastomer core. It allows recovery after compression. Braided mesh gaskets can be made into different sectional shapes to suit different equipment. Conventional section shapes include circle, rectangle, circle with tail, double circle and so on.
Solid knitted wire mesh gasket is a high density elastic gasket formed under pressure. Due to its high metal density, it provides excellent shielding performance. Electromagnetic shielding by sealing the gap between equipment and machine. Tinned copper mesh washer has better shielding performance than other materials. It is also the most widely used type. Compression gaskets can be made in different shapes to suit a variety of applications, such as round, square or rectangular.
Knitted Wire Mesh Gaskets Description
| product name | Stainless Steel High Temperature Resistance 0.10mm Knitted Wire Mesh Gaskets For Shielding |
| Material | stainless steel wire 304 |
| Technique | compressed knitted |
| Wire diameter | 0.08-0.55mm |
| Diameter size | customized |
| Thickness | customized |
| Feature | High strength and overall rigidity Good air permeability Excellent filtering accuracy Good filter resistance, mechanical strength, abrasion resistance, heat resistance and cold resistance Easy to clean, simple assembly, long replacement cycle. Special sizes can be customized. |
Knitted Wire Mesh Gaskets characteristics
The corrosion resistance.
Resistance to high temperature.
High durability.
Excellent EMI/RFI shielding.
Multiple shapes to accommodate more applications.
Knitted Wire Mesh Gaskets application
knitted wire mesh gaskets are mainly used for sealing covers and doors, emF ventilation panels and EMF /RFI window movable covers and interfaces.

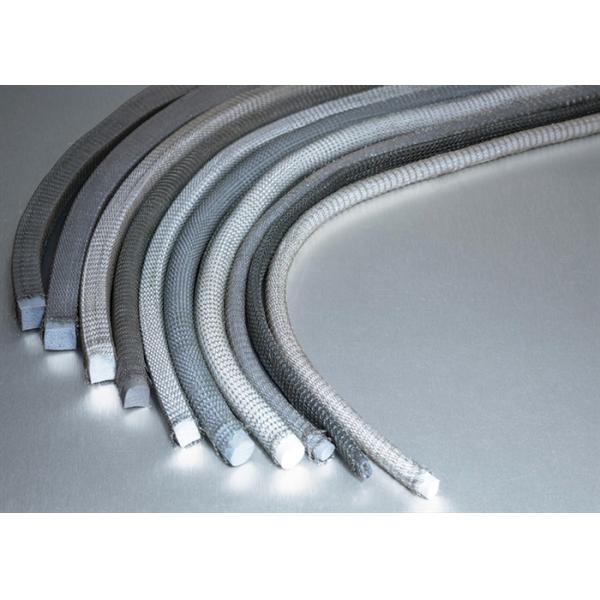

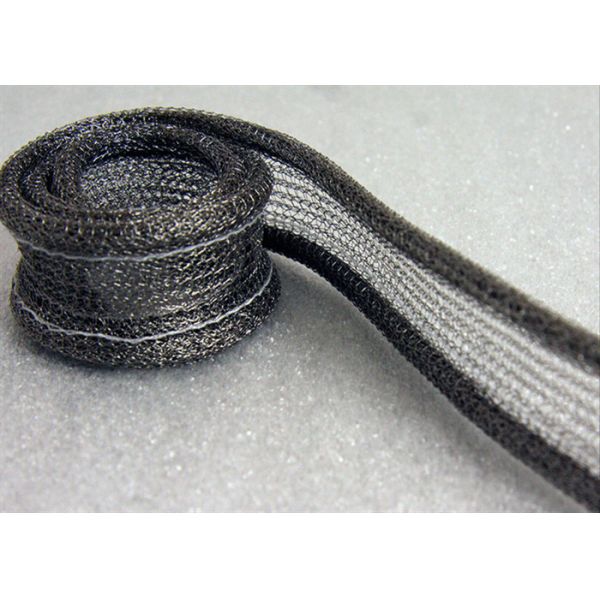

Knitted Wire Mesh Gaskets picture
